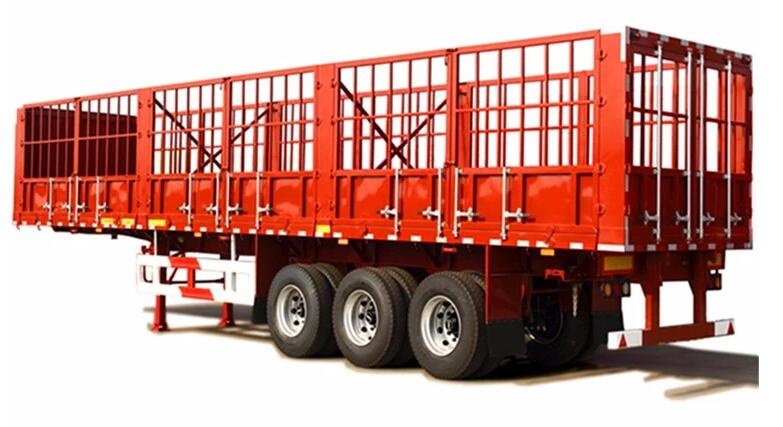

High Quality Tri Axles Livestock Fence Cargo Semi Trailer For Sale

High Quality Tri Axles Livestock Fence Cargo Semi Trailer For Sale
Loading...
  • High Quality Tri Axles Livestock Fence Cargo Semi Trailer For Sale
Product name : High Quality Tri Axles Livestock Fence Cargo Semi Trailer For Sale
Product No. : SINOHVCLIVE
1 : Type of Vehicle-Fence Cargo Semi Trailer
2 : Dimension-13000mm*2495mm*3350mm
3 : Payload -40t
4 : Support Legs- 28ton
5 : Tires-12R22.5
←[Previous Product]              [Next Product]→
Details:
 High Quality Tri Axles Livestock Fence Cargo Semi Trailer For Sale

Main Description

Overall Dimension

13000mm*2495mm*3350mm

Box Body Dimension

12780mm*2300mm*1550mm+sidewall 600mm+fence 1000mm+top 200mm

Tare Weight

8000kg

Pay Load

40ton

King Pin Setting

1460mm

Rear Overhang

1930mm, 2130mm

Track

1840mm

Loading surface height

1600mm

Wheel base

7000mm+1305mm+1305mm, 6800mm+1305mm+1305mm

Running Gear

Suspension

Tri-axle mechanical suspension with 11-pcs leaf spring

Wheel Hubs

Cast steel, 10 studs

Tires

12R22.5, 11.00-20, 11.00R20,12.00-20,12.00R20, 12units

Axles

3AQ,FUWA,JSAFBPW or STEYR axle, load capacity 13T

Brakes

Dual lines pneumatic brake systemWABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy (16Mnby Automatic submerged arc welding.

Cross Beam

Mild Alloy Q235

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled

Landing Gear

Single side operation or double side operation, Static capacity 30Ton

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Paint

Sand blasting before painting2 coat of anticorrosive primer2 coats of finish urethane paint, Color upon request
