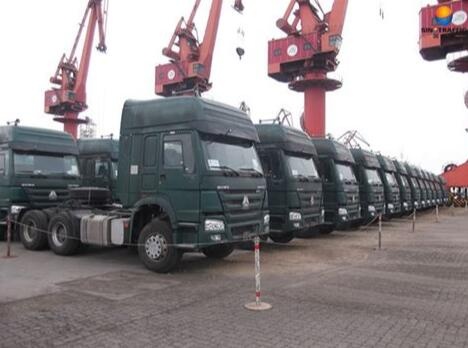

Sinotruk angola tractor towing truck

Sinotruk angola tractor towing truck
Loading...
  • Sinotruk angola tractor towing truck
Product name : Sinotruk angola tractor towing truck
Product No. : ZZ4257S3241V
1 : Horse power -420hp
2 : Drive Model - 6x4
3 : Payload -60T
4 : Fuel tank capacity-400L
5 : Tires-315/80R22.5
←[Previous Product]              [Next Product]→
Details:
  Sinotruk angola tractor towing truck

Model

HOWO 6x4 tractor truck

Cabin

Four points suspension Cabin with spring and air shock absorber, Adjustable steering,

Sun cover, A/C, low cabin with single sleeper

Engine

Type: Diesel 4-stroke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

D12.42

STEYR technology(CNHTC)



Engine power

420hp/309kw



Displacement(L):

11.596 liter (Euro 2 standard)



Max torque:

1820NM@1100-1400rpm



Bore/stoke:

126mm/155mm



Fuel consumption:

188g /kwh

Gear box

CNHTC

Max torque:1900NM



Model:

HW19710



Speed:

10speed, 2 reverse

Axle(front/rear)

Front axle

HF9 STEYR technology front steering axle

Tandem

HC16 double reduction hub reductor driving axle

Clutch

D430 diaphragm type clutch

Brake

Service brake: Dual lines air brake



Parking brake: Spring-Power drum brake



Engine brake: Engine exhaust brake(EVB)

Steering

ZF8118, driver sit at the left hand side

Electric  Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim



12.00R20 radial tyre

Suspension system: Strengthen heavy duty Leaf spring type



Front/Rear

9/12

Overall dimension(mm): 6800x2496x2958 (Length x width x height)

Wheelbase

3225+1350mm

Track:





Front/Rear

2022/1830



Approach/Departure angle

16/70



Front /Rear overhang

1500/725



Max speed

102km/h

Kerb weight:

9230kg
