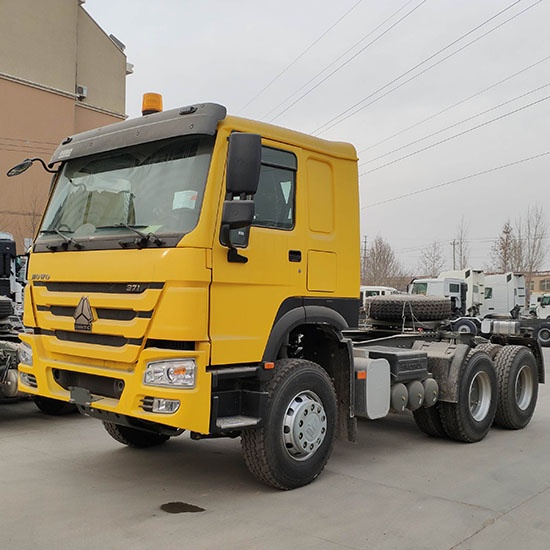

Truck Model |
ZZ4257N3247A LHD |
|
|
Dimension(LxWxH)(unloaded) (mm) |
6800x2496x3668 |
|
|
Wheel base (mm) |
3225+1350 |
|
|
Max speed(km/h) |
102 |
|
|
Curb weight(kg) |
8800 |
|
|
Loading Weight(kg) |
40000 |
|
|
Engine (Steyr technology, made in China) |
Model |
WD615.47, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|
Fuel type |
Diesel |
|
|
Horse Power, max(kw/rpm) |
371HP, |
|
|
Emission |
EURO2 |
|
|
Fuel tanker capacity |
400 |
|
|
Transmission |
Model |
HW19710 |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Steering system |
Model |
ZF8098 |
|
Front axle |
HF9, |
|
|
Rear axle |
HC16, |
|
|
Color |
White,red,etc |
|
|
Tyre |
295/80R22.5, tubeless tyre, 10+1 spare |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HOWO76 cab(single sleeping, with air conditioner) |
|
