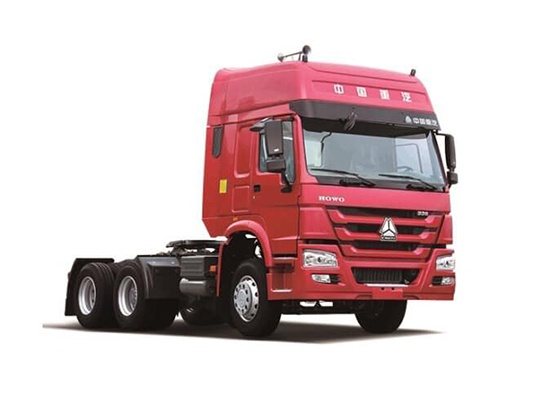

howo 10 wheeler tractor head

howo 10 wheeler tractor head
Loading...
  • howo 10 wheeler tractor head
Product name : howo 10 wheeler tractor head
Product No. : 201987165917
1 : Horse power -340hp
2 : Drive Model - 6x4
3 : Payload -60t
4 : Fuel tank capacity-400L
5 : Tires-12.00R20
←[Previous Product]              [Next Product]→
Details:
howo 10 wheeler tractor head

1. High quality and competitive price. Good partners like MAN,Volvo and Steyr.
2. Quick response to your inquiry, we have special sales team for different markets
3. Flexible payment terms,T/T, L/C and installment.
4. Rich experience and stong production capacity, 60 years experience and 50000 units annual output.


Model

HOWO 6x4 tractor head

Cabin

Four points suspension Cabin with spring and air shock absorber, Adjustable steering,

Sun cover, A/C, low cabin with single sleeper

Engine

Type: Diesel 4-stroke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

D10.340

STEYR technology(CNHTC)



Engine power

340hp/250kw



Displacement(L):

9.726 liter (EuroII standard)



Max torque:

1700NM@1100-1400rpm



Bore/stoke:

126mm/155mm



Fuel consumption:

188g /kwh

Gear box

CNHTC

Max torque:1900NM



Model:

HW19710



Speed:

10speed, 2 reverse

Axle(front/rear)

Front axle

HF9 STEYR technology front steering axle

Tandem

HC16 double reduction hub reductor driving axle

Clutch

D430 diaphragm type clutch

Brake

Service brake: Dual lines air brake



Parking brake: Spring-Power drum brake



Engine brake: Engine exhaust brake(EVB)

Steering

Power steering, driver sit at the left hand side

Electric  Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim



12.00R20 radial tyre

Suspension system: Strengthen heavy duty Leaf spring type



Front/Rear

9/12

Overall dimension(mm): 6800x2496x2958 (Length x width x height)

Wheelbase

3225+1350mm

Track:





Front/Rear

2022/1830



Approach/Departure angle

16/70



Front /Rear overhang

1500/725



Max speed

102km/h

Kerb weight:

9230kg
