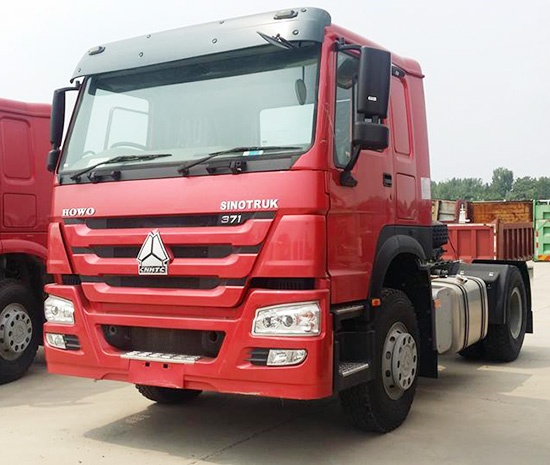

Truck Model |
ZZ4187N3517 LHD |
||||
|
Dimension(Lx W xH)(unloaded)(mm) |
6110x2496x2958 |
||||
|
Approaching angle/Departure angle(°) |
16/42 |
||||
|
Overhang(front/rear) (mm) |
1500/1110 |
||||
|
Wheel base (mm) |
3500 |
||||
|
Max speed(km/h) |
102 |
||||
|
Curb weight(kg) |
7100 |
||||
|
Engine (Steyr technology, made in China) |
Model |
water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|||
|
Fuel type |
Diesel |
||||
|
Horse Power |
371HP |
||||
|
Emission |
EURO2 |
||||
|
Fuel tanker capacity(L) |
400 |
||||
|
Transmission |
Model |
HW19710,10-Forward gears,2-Reverse |
|||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Steering system |
Model |
hydraulic steering with power assistance |
|||
|
Front axle |
HF7, |
||||
|
Rear axle |
ST16 |
||||
|
Color |
White,red,etc |
||||
|
Tyre |
12R22.5 6+1 spare tyre |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 cab(one bunk, with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
|
||||
