  • Sinotruk 10 wheels Heavy Duty 30ton Mining Dump Truck
Product name : Sinotruk 10 wheels Heavy Duty 30ton Mining Dump Truck
Product No. : 2019114144030
1 : Horse power - 371
2 : Drive Model - 6x4
3 : Payload -30t
4 : Cargo Box Size -5400mmx2300mmx1500mm
5 : Tires-12.00R20
←[Previous Product]              [Next Product]→
Details:

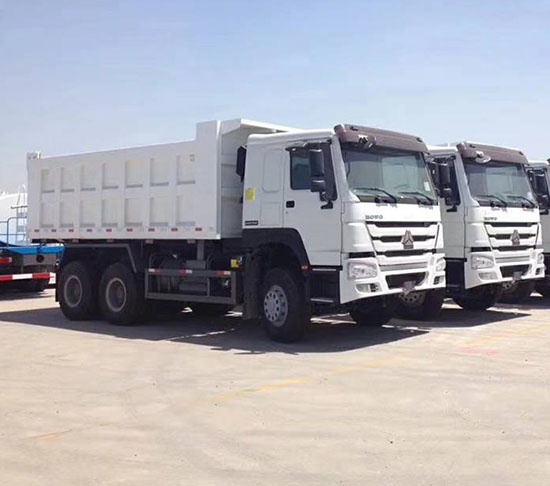

 Sinotruk 10 wheels Heavy Duty 30ton Mining Dump Truck

Truck Model ZZ3257N3647A  (LHD)
Dimension(Lx W xH)(unloaded) 8214x2496x3386
Cargo body size (L*W*H, mm) 5400x2300x1400
Cargo body thickness(mm)  bottom:8mm, side:6mm,
Lift type of Carriage  Ventral lifting
Approaching angle/Departure angle(°)  19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 12290
Loading Weight(kg) 30000
Fuel tanker capacity  300L with locking fuel cap
Fuel consumption(L/100km) 32
Clutch  Single-plate dry clutch Φ420mm
Engine Model Model  WD615.47,
(Steyr technology, made in China) Power (kw/rpm) 371HP,247/2200
Emission Standard  EURO II
Transmission  Model HW 19710,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake  Engine exhaust brake
Steering system  Model ZF8098 hydraulic steering with power assistance
Front Axle Loading:9000KG
Rear axle
Color  Optional
Tire  12R22.5   11 pieces
Cab HW76 cab, (one sleeper, with air-condition)
