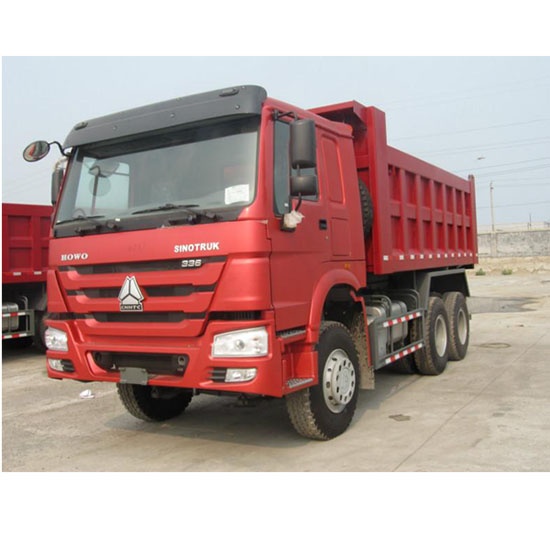

howo dump truck durable and bearing capacity
This truck adopt through-type technology and rear axle single-stage reducer, so which is with high efficiency drive. The use of advanced design and optimized the design of he frame, making the structure more reasonable, durable, with strong bearing capacity.
howo 25 tons dump truck Endless power and the master of projects
Adopt optimized design of lift hydraulic and lift units, with reliable quality and stable lifting.
|
Truck Model |
Left Hand Drive or Right Hand Drive model |
||
|
Truck Brand |
SINOTRUK -HOWO |
||
|
Dimension(Lx W xH) |
8545x2496x3386 |
||
|
Cargo body size (L*W*H, mm) |
5800x2300x1400 |
||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm, or customized as you required |
||
|
Lift type of Carriage |
Ventral lifting or front tipping |
||
|
Approaching angle/Departure angle(°) |
19/26 |
||
|
Overhang(front/rear) (mm) |
1500/1739 |
||
|
Wheel base (mm) |
3625+1350 |
||
|
Max speed(km/h) |
75 |
||
|
Curb weight(kg) |
12290 |
||
|
Loading Weight(kg) |
25000 |
||
|
Fuel Tanker |
300L with locking fuel cap |
||
|
Fuel consumption(L/100km) |
32 |
||
|
Clutch |
Single-plate dry clutch Φ430mm |
||
|
Engine |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , |
|
|
Horse Power, |
371HP |
||
|
Emission Standard |
EURO II |
||
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||
|
Auxiliary brake |
Engine exhaust brake |
||
|
Steering system |
Model |
ZF8098/ZF8118 hydraulic steering with power assistance |
|
|
Front axle |
HF9 |
||
|
Rear axle |
HC16 |
||
|
Tire |
12.00R20, 12.00-20 |
||
|
Electrical system |
Operating voltage |
24V,negative grounded |
|
|
Starter |
24V,7.35KW |
||
|
Alternator |
28V,1500W |
||
|
Batteries |
2*12V.165Ah |
||
howo dump truck assembly line
3. howo dump truck body
