*Powerful and reliable engine.
*Large loading capacity.
*Reliable and Popular,especially in Africa,south America,Middle East and south East Asia.
*Better after sale servce.
*Longer Guarantee Time.

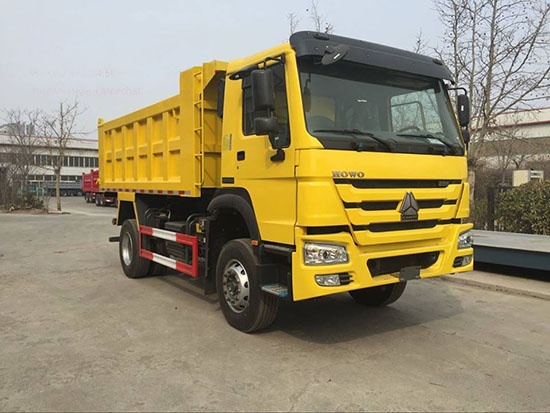

howo dump truck 6 wheeler specification
|
ZZ3167M3811 |
||||
|
Dimension(Lx W xH)(unloaded) |
6980x2490x3350 Left Hand Drive |
|||
|
Cargo body size (L*W*H, mm) |
4200*2300*1400, bottom:8mm, side:6mm |
|||
|
Approaching angle/Departure angle(°) |
19/27 |
|||
|
Overhang(front/rear) (mm) |
1500/1680 |
|||
|
Wheel base (mm) |
3800 |
|||
|
Max speed(km/h) |
75 |
|||
|
Curb weight(kg) |
7950 |
|||
|
Engine (Steyr technology, made in China) |
Model |
WD615.87 |
||
|
Fuel type |
Diesel |
|||
|
Horse Power, max(kw/rpm) |
290HP |
|||
|
Emission |
EURO 2 |
|||
|
Transmission |
Model |
HW19710 |
||
|
Steering system
|
Model |
8118 |
||
|
Front axle |
HF9 |
|||
|
Rear axle |
HC16 |
|||
|
Color |
optional |
|||
|
Tyre |
12.00R20 Radial tire 7 pieces |
|||
|
Electrical system |
Battery |
2X12V/165Ah |
||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HW70 cab, (No bunk, with A/C,) all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
