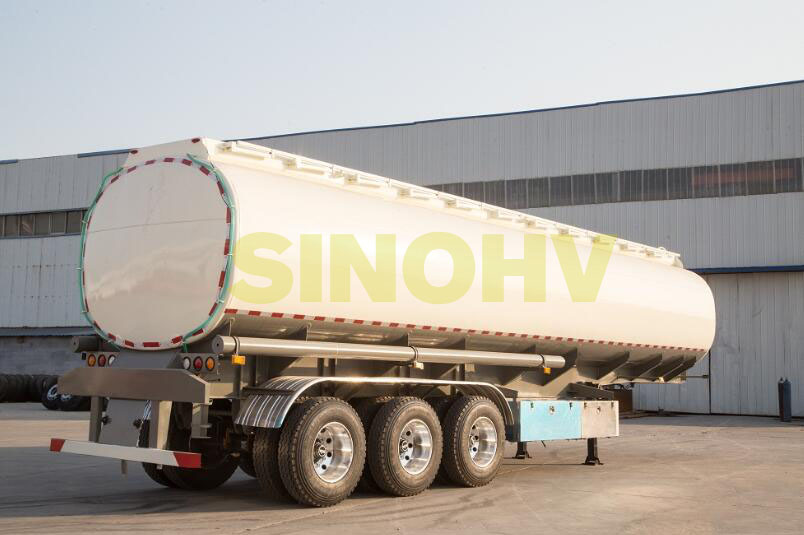

40000L diesel oil fuel tanker semi trailer for sale


40000L diesel oil fuel tanker semi trailer for sale

specially for carrying oil/fuel, like diesel or AGO,petrol or PMS,Jet fuel or DPK,kerosene or DPK

safety guaranteed fuel tanker trailer
more than 60 years experence of making special trucks and various trailers for exporting

Volume of fuel tanker trailer :30,000L~55,000L are available!

API standard fuel tanker trailer  ;

NNPCfuel tanker trailer  ;

Carbon steel Aluminum alloy fuel tanker trailer      ;

ASME DOT Saso Saudi arabia Aramco   fuel tanker trailer

Product Details :




Fuel tank semi trailer Specification

Model Name

Factory direct sale 3 axles 40000L diesel oil fuel tanker semi trailer

Function

oil and fuel

Overall Dimension

(L*W*H) 11500*2500*3800mm

Volume

40m3

Tare weight

10500KG

Tank body

Q235/4mm steel

End plate

Q235/6mm steel sheet

Axle

3 axle 13T Fuwa Brand

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring suspension

Manhole cover

500mm manhole cover 1 sets

Tire

12.00R20  12pcs

Rims

9.0, 12 pieces

Discharge valve

4''disc valve ,1pcs

Discharge pipe

4''seamless steel tube ,1pcs

Spare Wheel Bracket

2'' bolt-in king pin

Landing gear

Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t

Tool box

one piece

Compartment

1

Braking system

RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

Electrical system

voltage:24V 2.Receptacle:7ways(7wire harness)

Tail lamp with turn signal,brake light&reflector,side lamp etc.

One set 6-core standard Cable

Accessories

One standard tool box.fire extinguisher 2 pcs

Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Main beams

Opting for high tensile steel Q345B welded by automatic submerged-arc processes

Packing

Polish with wax before shipping


Main parts we use

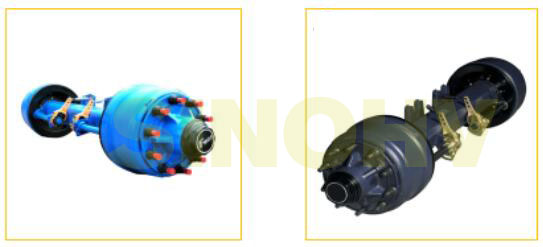

1. for trailer axle, Normally we use the brand of Fuwa and BPW axles, they are high quality axles to make sure the trailer can work in good conditon all the time.

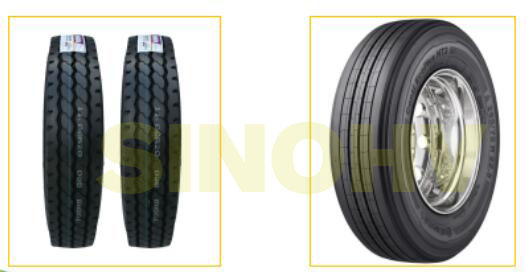

2.Trailer tires , we use 11.00R20,12R22.5,315/80R22.5, 385/80R22.5,Tubeless tire and Radial tire optional. the brand of tire, just Bridgestone, Micheli, Trigangle, Double coin etc. Triangle is the most brand we use for exportaiton.

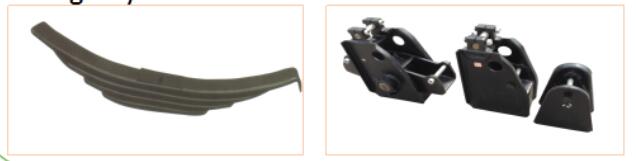

3.Leaf spring, Mechanial suspension, leaf spring is 8/10/13 pieces per axle. and the leaf spring can be thicker ,Mechanical suspension not only play a guiding role, but also play a part of the role of elastic components. Mechanical suspension has high strength and rigidity.

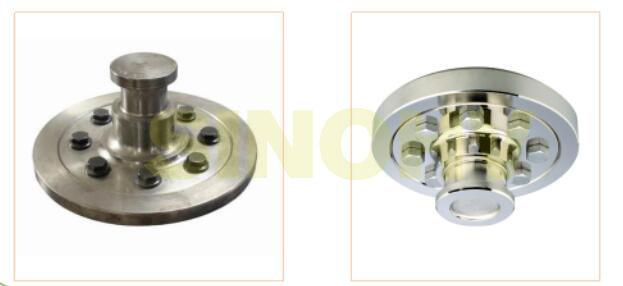

4.Kingpin: Kingpin and fith wheel is matching,King pins are 50# or 90# ,Jost brand and so on optional


Produciton Process

1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.

6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our trucks in nude with anti rust wax or spraying anti rust oil, spare parts be packed by neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and  the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
