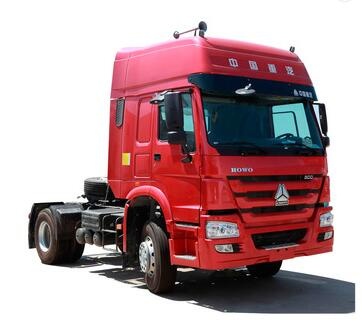

Product name : HOWO truck head for sale
Product No. : 20189411712
1 : Horse power - 371hp
2 : Drive Model - 4x2
3 : Payload -40T
4 : Fuel tank capacity-400L
5 : Tires-1200R20
Details:
HOWO truck head for sale
| SINOTRUK HOWO 4X2 TRACTOR TRUCK,TRACTOR HEAD 371HP | ||
| MODEL | HOWO 4X2 TRACTOR TRUCK | |
| Cab | Driving type | Left Hand Drive(RHD is optional) |
| Cab type | HW79 high roof cab with two sleeper beds,with A/C | |
| Engine | Engine Model | WEICHAI WD615.47,371hp |
| Type | 6-cylinder in-line with water cooling, supercharging & inter cooling | |
| Displacement | 9.726L | |
| Engine output | 371hp/2200 rpm | |
| Max. torque | 1460NM /1300-1600rpm | |
| Frame and equipments | Transmission (gear box) | HW19710,10 speed transmission |
| Clutch | D430 Diaphragm type | |
| Steering | ZF8098 | |
| Front axle | HF7 drum type, 7tons | |
| Rear axle | HC16 Double reduction Ratio=3.73 | |
| Fuel tank | 400L | |
| Tires | 12.00R20,6+1spare | |
| Weights in kg | Kerb. mass | 7210kg |
| Total mass | 18000kg | |
| Max.towed capacity | 40tons | |
| Performance | Max. speed (km/h) | 102 |
| Max. gradeability(%) | 30 | |
| Approach/departure angle | 16/42 degree | |
| Dimension in mm | Overall dimension(mm) | 6110×2496×3563 |
| Wheel base (mm) | 3500 | |
| Front/rear overhang (mm) | 1500/1110 | |
| Front /rear wheel track(mm) | 2022/1850 | |
| Saddle joint surface height(empty/full) | 1330/1297 | |
| Front/rear turning circle(mm) | 2220/1820 | |
| Minimum ground clearance(mm) | 267 | |
| Saddle size | 2''( 3.5'' is optional) | |
