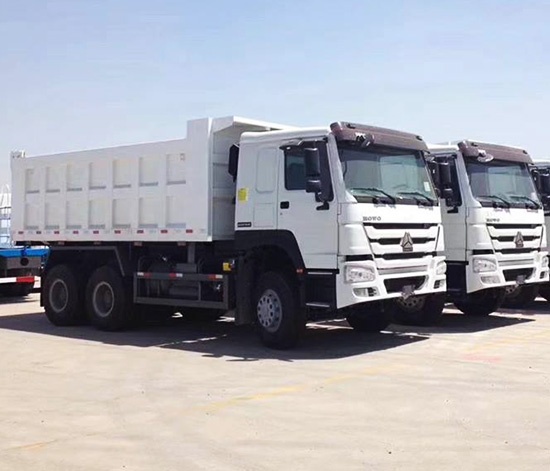

Howo Sinotruck 6*4 Drive Dump Truck For Sale

Howo Sinotruck 6*4 Drive Dump Truck For Sale
Loading...
  • Howo Sinotruck 6*4 Drive Dump Truck For Sale
Product name : Howo Sinotruck 6*4 Drive Dump Truck For Sale
Product No. : ZZ3257S4647
1 : Horse power - 371
2 : Drive Model - 6x4
3 : Payload -35t
4 : Cargo Box Size -5800mmx2500mmx1200mm
5 : Tires-12.00R20
←[Previous Product]              [Next Product]→
Details:
Howo Sinotruck 6*4 Drive Dump Truck For Sale

1.HW76 cab(single sleeping, with air-condition)

2.all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds

3. Oversize dimensions 9510x2496x3450mm

4.Bottom plate 8mm Van body material Common steel

5.The Sinotruck 6*4 Drive Dump Truck works together with the excavators, wheel roaders, track transporter and other machines


Truck Model

ZZ3257S4647 SINOTRUCK 6*4 dump truck for sale

Truck Brand

SINOTRUK –HOWO

Dimension(Lx W xH)(unloaded)(mm) 9510x2496x3450
Cargo body size (L*W*H)

5800x2300x1115

Lift type of Carriage

Ventral lifting(optional)

Approaching angle/Departure angle(°)

14/21

Overhang(front/rear) (mm)

1500/2035

Wheel base (mm)

 4625+1350

Max speed(km/h)

80

Curb weight(kg)

12490

Loading Weight(kg)

25000

Fuel tanker capacity(L)

300L

Clutch

Single-plate dry clutch Φ430mm





Engine Model



Model

WD615.47

Horse Power, max(kw/rpm)

371HP(optional)

Emission

EURO II(optional)

Fuel Type

diesel

Transmission

Model

HW19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

8118

Front axle

HF9

Rear axle

HC16

Color

Optional

Tire

12.00R20 Steel wire tire ,10+1 spare

Electrical system

Operating voltage

24V, negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cab

HOWO76 cab, (single sleeper, with air-condition).
