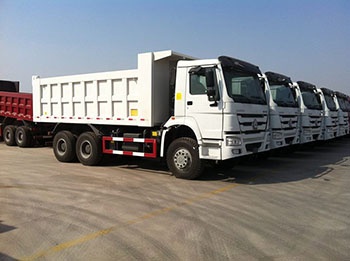

Model No |
ZZ3257N3847A |
|||
|
Cab |
HOWO70 (no bed),with Air- condition |
|||
|
Engine |
Model |
WD615.69 |
||
|
Power(PS/RPM) |
EUROII 273/2200 |
|||
|
Max. Torque(NM/RPM) |
1350 |
|||
|
Displacement(L) |
9.726 |
|||
|
Transmission |
HW19710(10 forward,2 reverse) |
|||
|
Front axle |
HF9 Max loading :9000KG |
|||
|
Rear axle |
HC16 Max loading :16000KG |
|||
|
Steering gear |
ZF8098,Right hand drive. Hydraulic steering with power assistance |
|||
|
Electric system |
Voltage |
24V |
||
|
Generator |
2240V |
|||
|
Batteries |
2*12V/165Ah |
|||
|
Starter power |
24V/7.5KW |
|||
|
Wheels and Tyres |
12.00-24, 11 units , one spare tyre |
|||
|
Fuel tank |
300 Liter |
|||
|
Carriage Internal Dimensions(mm) |
Steel thickness of Carriage |
Floor:12 Side:10 |
||
|
Dimensions |
5600*2300*1200 |
|||
|
Weight(Kg) |
Curb weight |
12600 |
||
|
Gross Vehicle Weight |
25000 |
|||
|
Rated load |
12325 |
|||
|
Vehicle Dimensions (mm) |
OverallL*W*H |
8375*2496*3450 |
||
|
Wheelbase(mm) |
3625+1350 |
|||
|
Performance |
Maximum speed(km/h) |
75Km/h |
||
