Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale

Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
Loading...
  • Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
Product name : Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
Product No. : ZZ3257N4147W
Horse power  : 371
Drive Model : 6x4
Payload : 35t
Cargo Box Size : 5400mmx2500mmx1500mm
Tires : 1200R20
             [Next Product]→
Details:

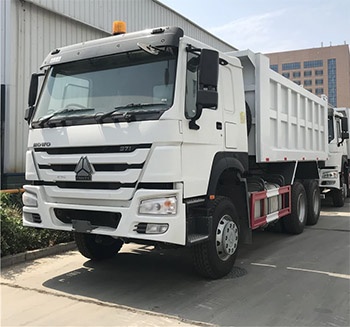

  Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale

DUMP TRUCK
 Model  ZZ3257N4147W (Left Hand Driving)
 Brand  SINOTRUK–HOWO
 Dimension(L x W x H)(mm)  8145x2496x3370
 Cargo body size (Lx W x H) (mm)  5400x2300x1300     16 m3
 bottom:8mm, side:6mm
 Lifting type  Middle Lift
 Approach/Departure angle(°)  19/26
 Overhang(front/rear) (mm)  1500/1739
 Wheel base (mm)  3825+1350
 Max speed(km/h)  75
 Curb weight(kg)  12290
 Loading Weight(kg)  30000
 Fuel tanker capacity(L)  300
 Fuel consumption(L/km)  20-40 L/100 km
 Clutch  Single-plate dry clutch Φ430mm
 Fuel type  Diesel
 Horse Power  336HP
 Emission  EURO II
 Engine  WD615.69water-cooled,four strokes,6 cylinders in line with water cooling,
 turbocharged and intercooling, directly injection
 Transmission  HW19710,10 forwards and 2 reverse
 Service brake  Dual circuit compressed air brake
 Parking brake  Spring energy, compressed air operating on rear wheels
 Auxiliary brake  Egine exhaust brake
 Model  8118 hydraulic steering with power assistance
 HF9 , Steering with double T-cross section beam
 HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
 Optional
 Tire  12.00R20
 Cab  Right Hand Driving
 Battery  2X12V/165Ah
 Alternator  28V-1500kw
 Starter  7.5Kw/24V
